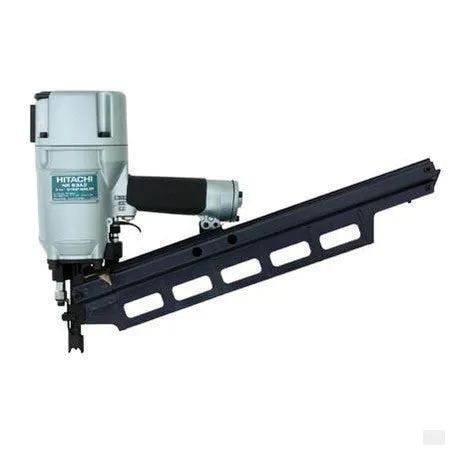

The NR83A2 Full Round Head Framing Nailer with Depth Adjustment is used for floor and wall framing, truss build-up, window build-up, etc. construction of subflooring and roof decking, wall sheathing and mobile home and modular house construction.
FEATURES:
- 7.9lbs, lightweight and well balanced for easy maneuverability
- Tool-less depth adjustment, to control depth of drive
- 2-piece steel magazine, for replacement ease
- Open nose design, for easy extraction of a jammed nail
- Rubber grip, for added comfort
- Hardened aggressive toenail push lever, resists wear for prolonged life
- Selective actuation (ANSI Compliant), allows transition from single actuation to contact actuation
- Available without depth adjustment (NR83A2(S))
Includes
- Safety Glasses (875770)
- Hex Bar Wrenches (3) (872422, 944459, 944458)
SPECIFICATIONS:
| Full Round Head, Plastic Strip Collation |
| 21 Degrees |
| 2" - 3-1/4" |
| 113 to .131 |
| 64-70 |
| Top |
| 3/8" |
| 70-120psi |
| .088 (FT3/Cycle@100psi) |
| Open Nose |
| Tool-Less |
| Selective (Sequential/Bump Fire) |
| 21-13/16" x 4-1/4" x 13-3/8" |
| 7.9lbs |
